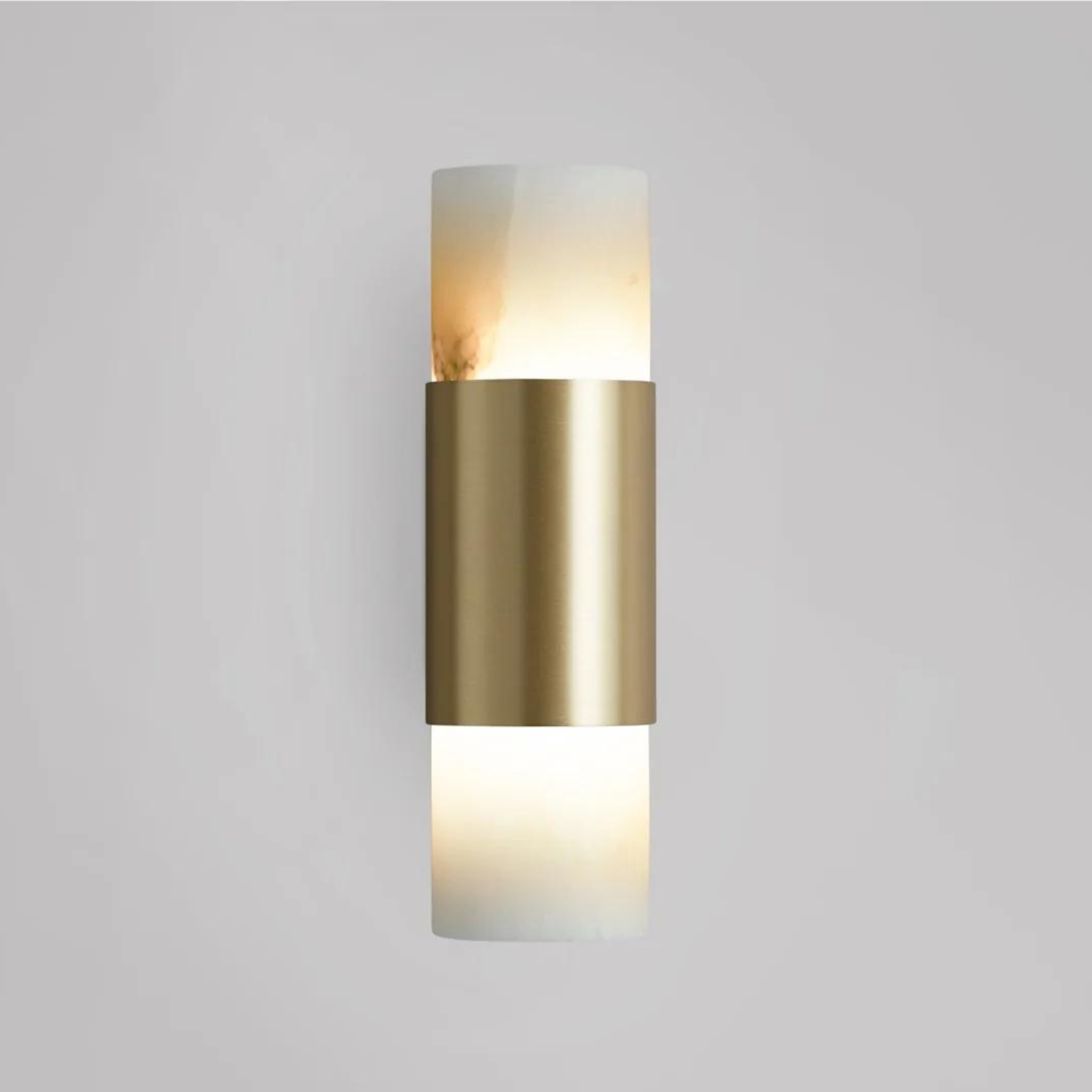

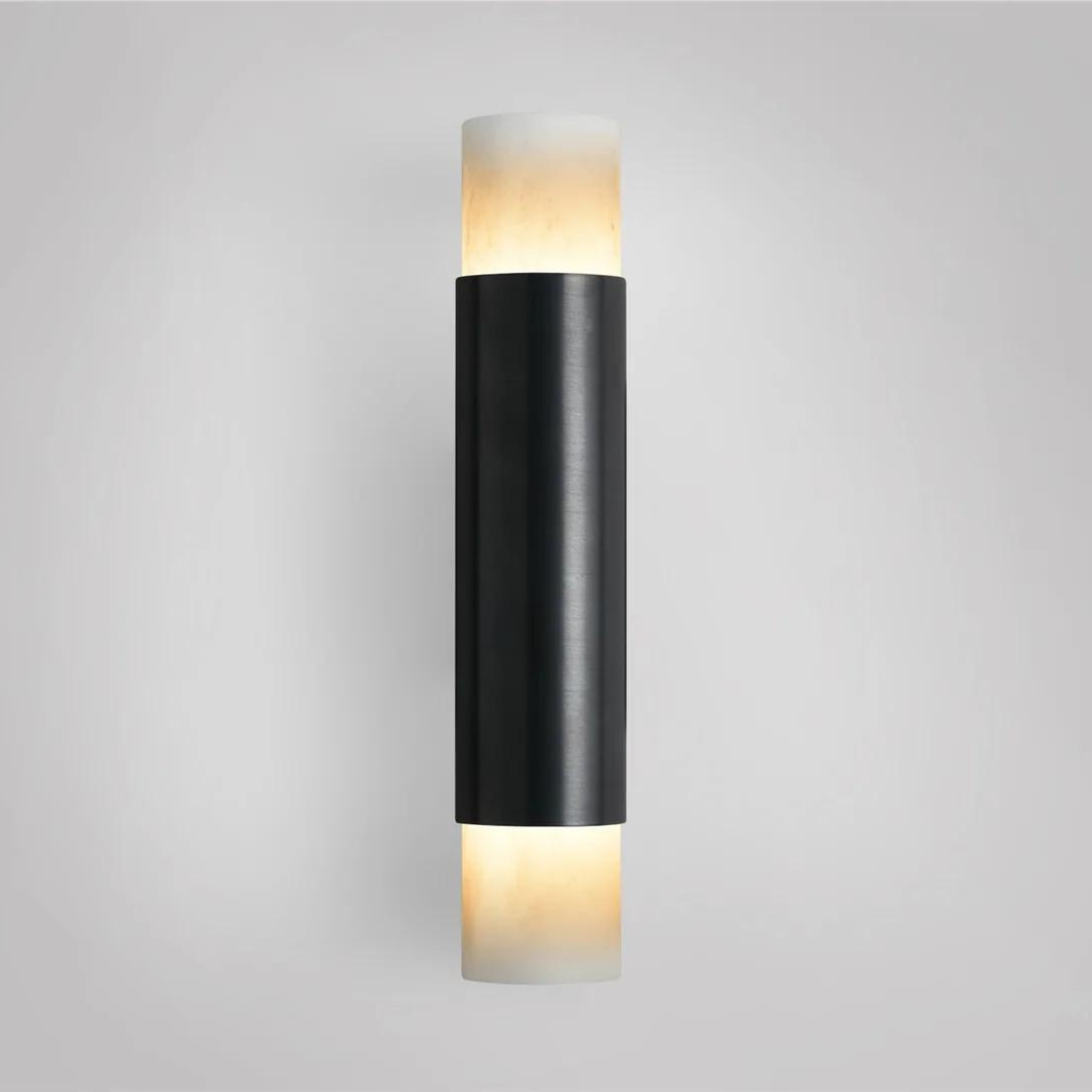

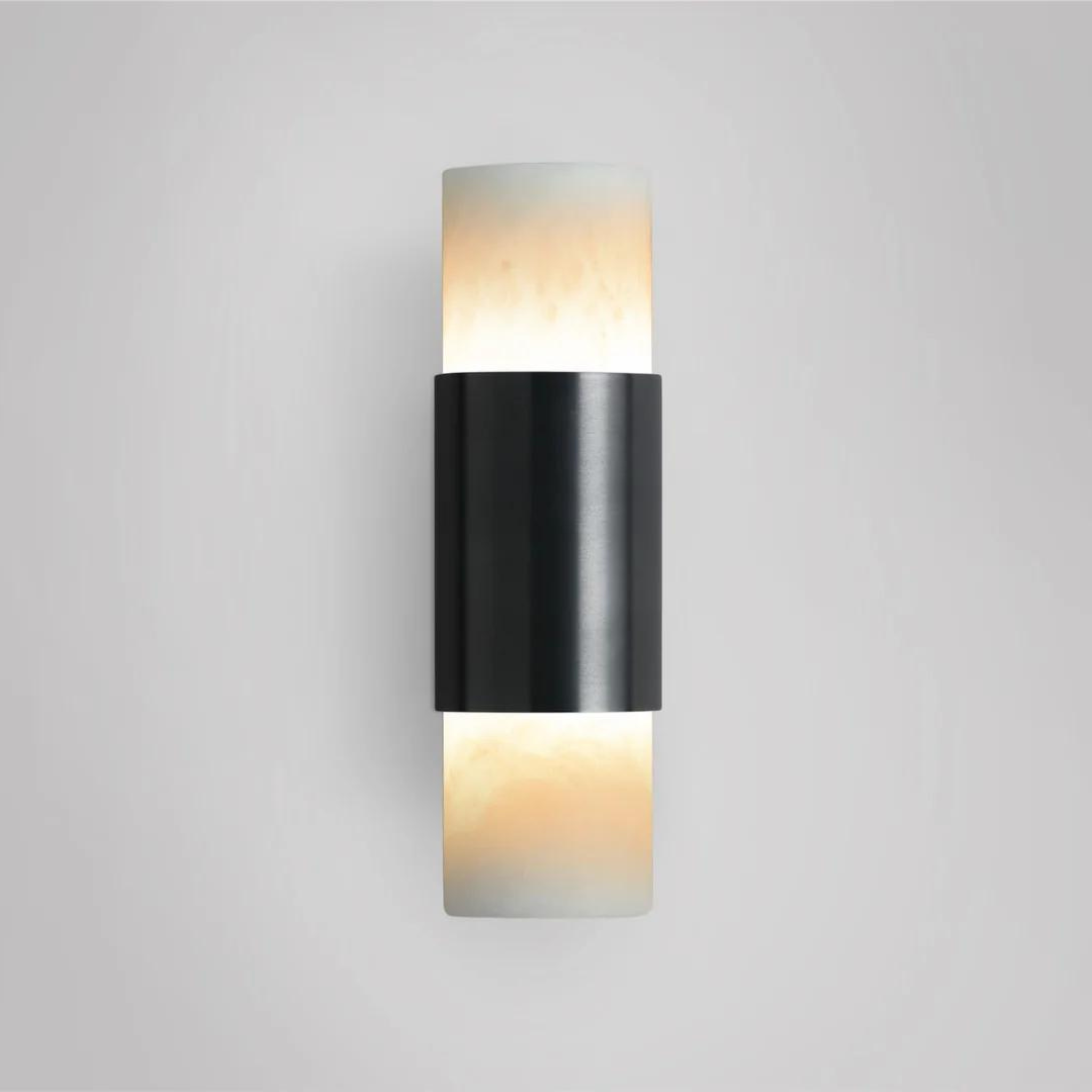

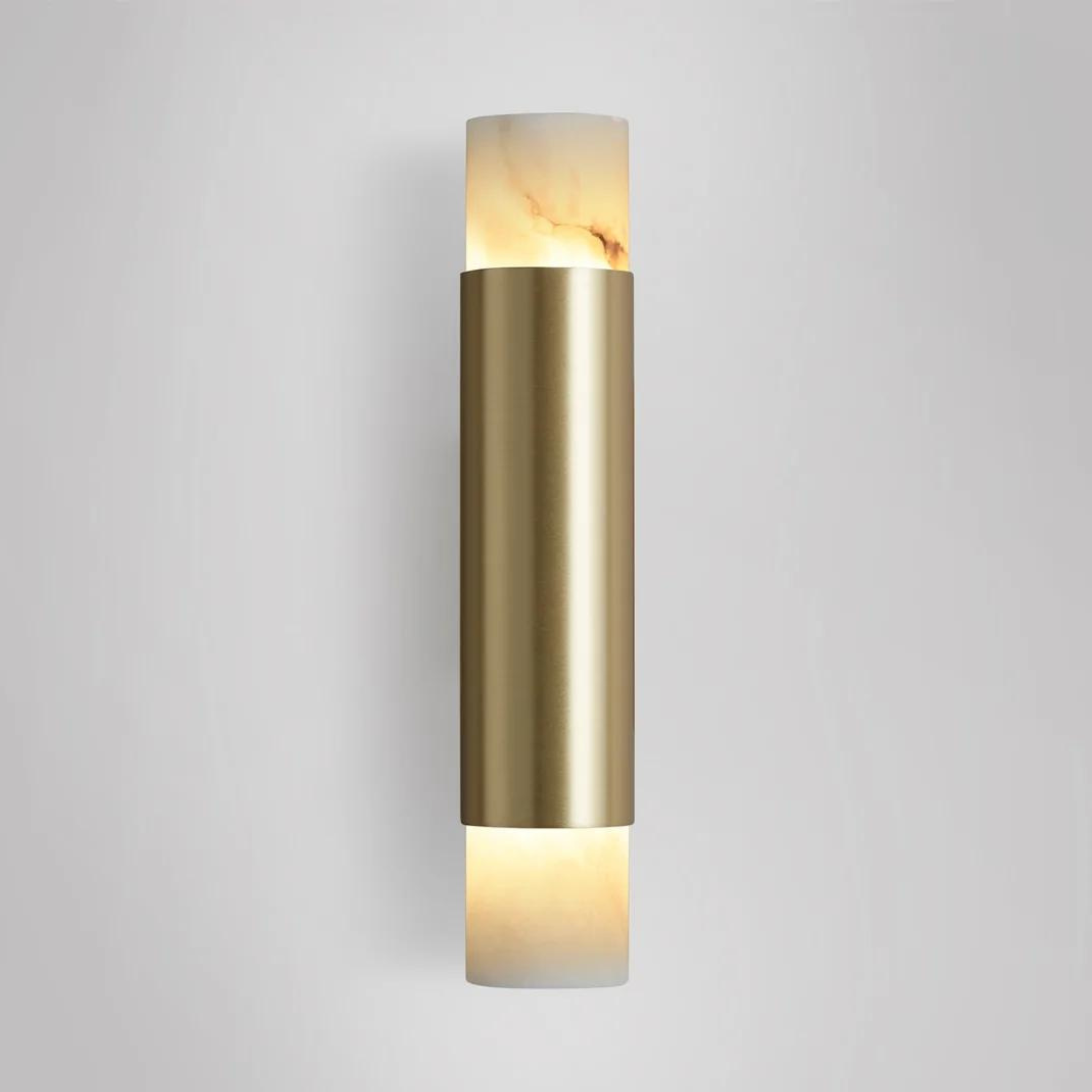

Roma Wall – CTO Lighting

The Roma Wall by CTO Lighting combines honed alabaster with refined metalwork in a compact architectural wall-light design. Measuring 54 × 85 × 180 mm, it features integrated 9W 2700K LED illumination and is available in four finishes with standard, DALI-A, or DALI-B options.

Product Specifications

• Dimensions: 54 × 85 × 180 mm (W × D × H)
• Weight: 2 kg / 4.4 lb
• Material: Honed Alabaster
• Light Source: Integrated mains LED
• LED: 9W, 2700K
• Voltage:
  • Standard: 220–240V / 110–130V
  • DALI-A / DALI-B: 220–240V only
• Standard Dimming: Trailing-edge / phase-cut rotary dimmer
• DALI-A: Available, 220–240V only
• DALI-B: Available, 220–240V only
• Standard / DALI-A Wall Box: 35 × 12 × 75 mm
• DALI-B Wall Rose: Ø116 × 25 mm
• IP Rating: IP20
• Certification: CE

DALI-A

DALI-A uses a converter installed inside the wall/ceiling cavity. It is available in 220–240V only and retains the rectangular 35 × 12 × 75 mm wall box.

DALI-B

DALI-B uses the converter inside the wall rose and is available in 220–240V only. It uses a deeper Ø116 × 25 mm round wall rose for installations where there is insufficient cavity space. The DALI-B fixture depth increases to 95 mm.
