Trace Circular – CTO Lighting

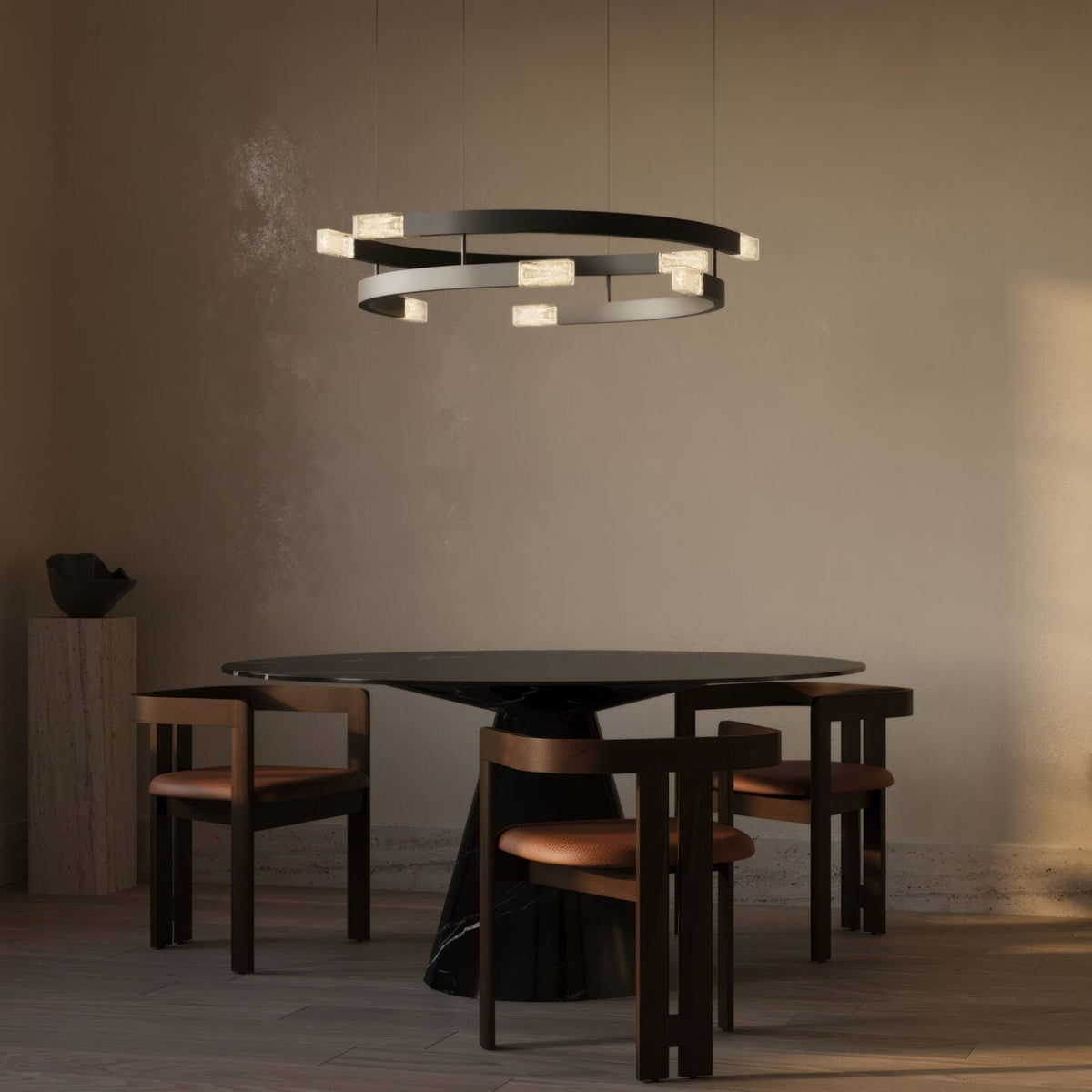

The Trace Circular by CTO Lighting is a sculptural circular ceiling light featuring a refined ring structure with liquid cast glass details. Available in Large and X-Large sizes, with Ceiling Mounted or Ceiling Rose configurations, the collection offers Antique Bronze and Bronze finishes, while the Large version is also available in Polished Nickel. Both sizes use integrated 2700K LED illumination and offer standard dimming with DALI-A available for 220–240V installations.

Product Specifications

• Size Options:

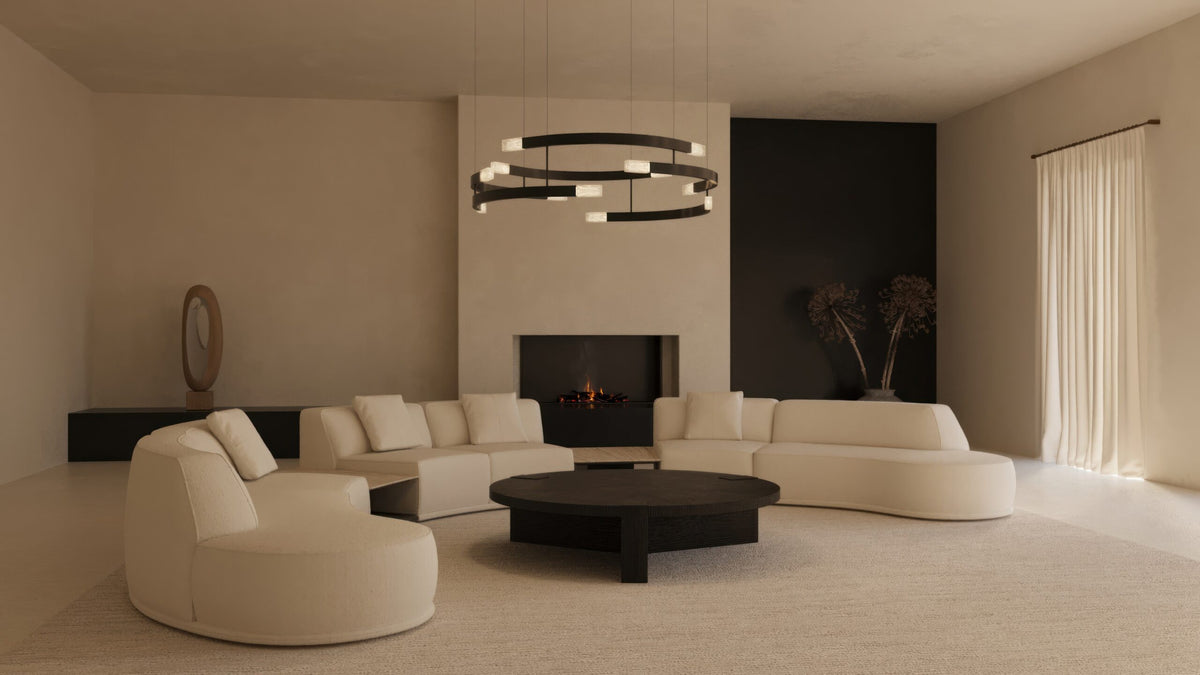

  • Large: 1050 × 1050 × 170 mm

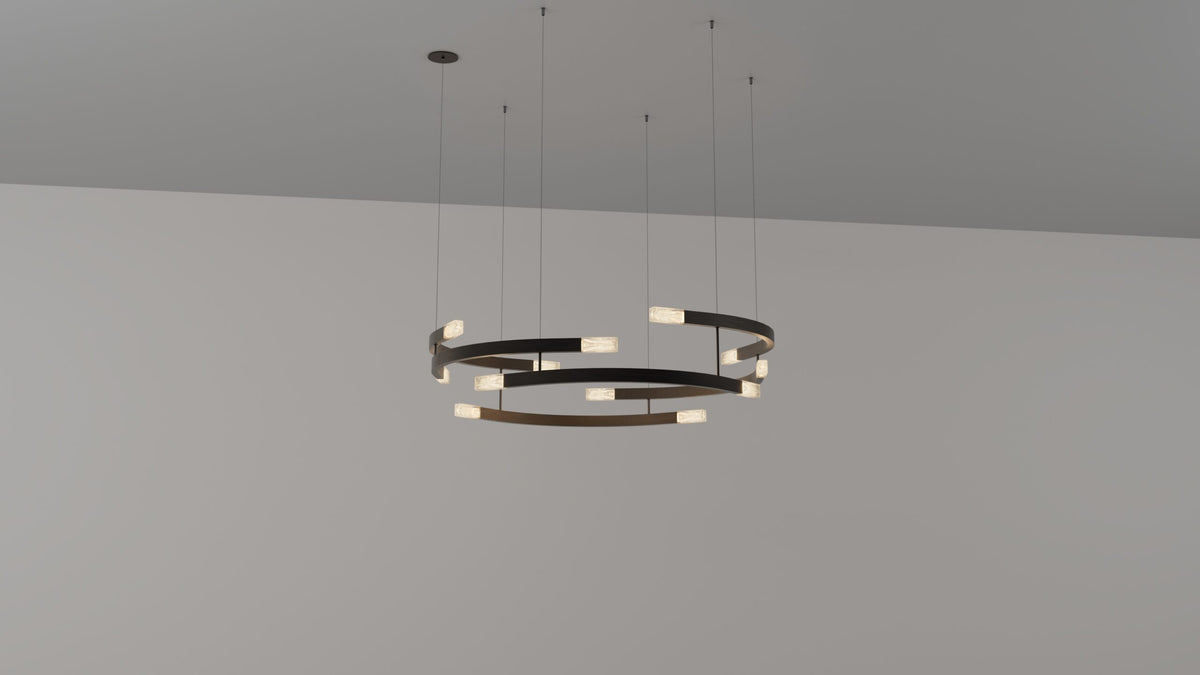

  • X-Large: 1305 × 1305 × 290 mm
• Configuration Options:
  • Ceiling Mounted / Mounting Plate
  • Ceiling Rose
• Finishes:

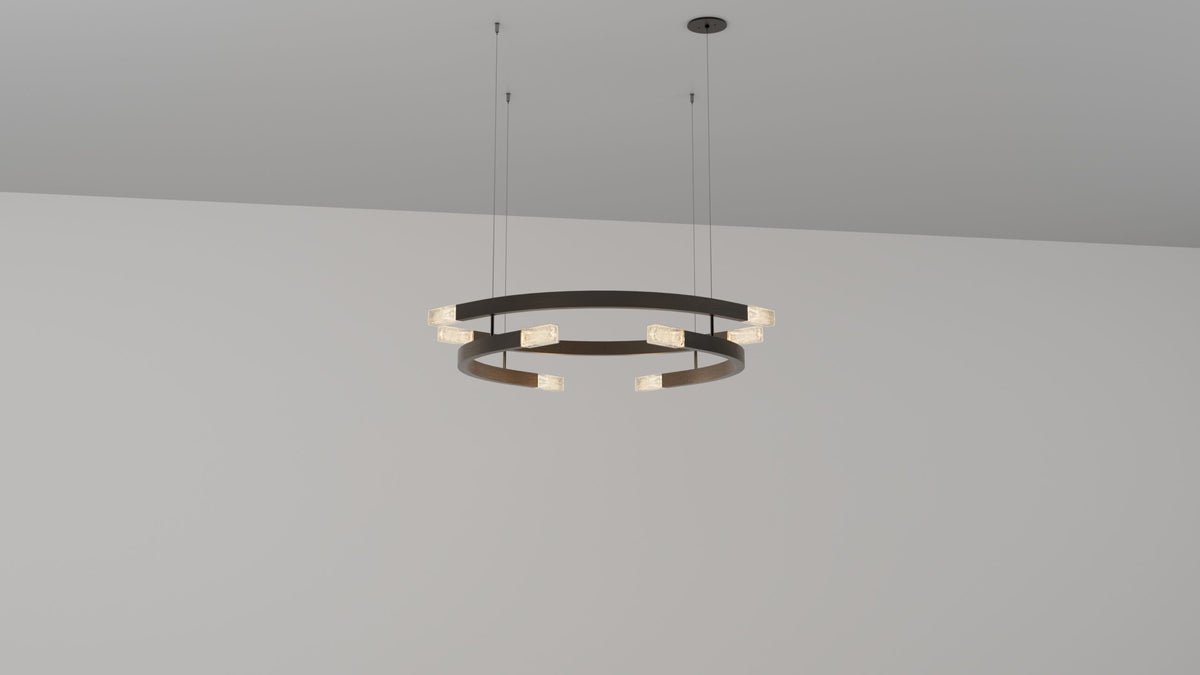

  • Antique Bronze with Liquid Cast Glass

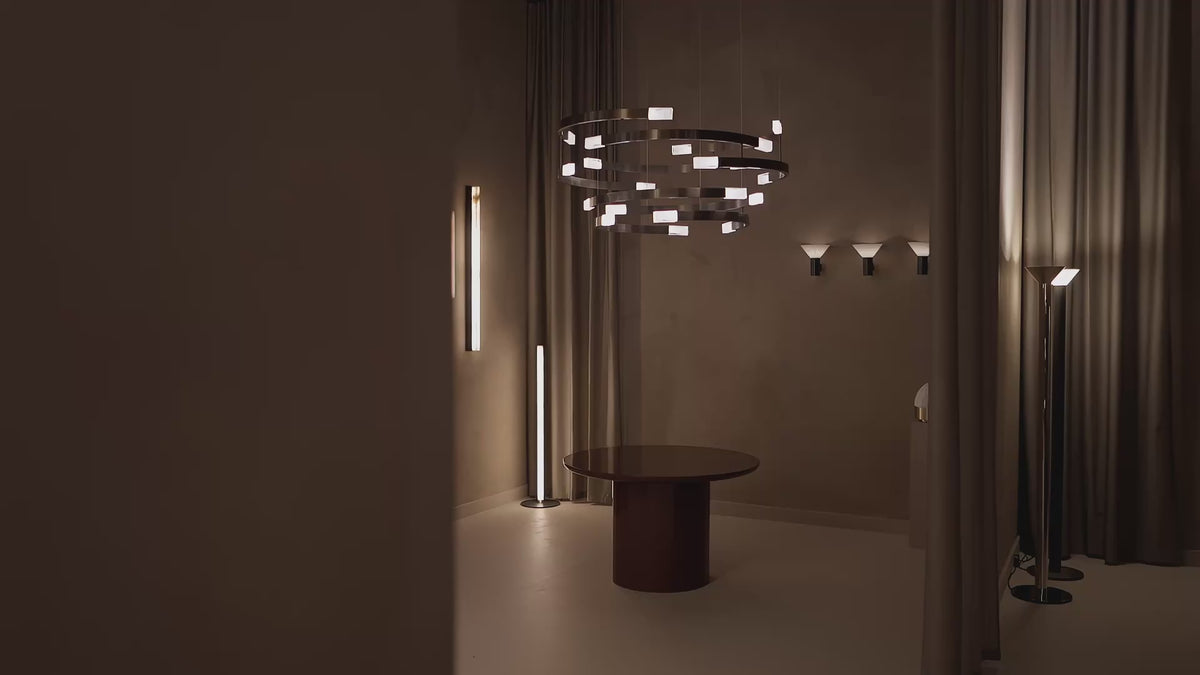

  • Bronze with Liquid Cast Glass
  • Polished Nickel with Liquid Cast Glass — Large only
• Weight:
  • Large: 14 kg Mounting Plate / 18 kg Ceiling Rose
  • X-Large: 21 kg Mounting Plate / 25 kg Ceiling Rose
• Light Source: Integrated LED
• Power:
  • Large: 33.6W
  • X-Large: 50.4W
• Colour Temperature: 2700K
• Voltage: 220–240V / 110–130V
• Overall Drop:
  • Large Mounting Plate: Minimum 278 mm; maximum on request 8178 mm
  • Large Ceiling Rose: Minimum 310 mm; maximum on request 8210 mm
  • X-Large Mounting Plate: Minimum 398 mm; maximum on request 8298 mm
  • X-Large Ceiling Rose: Minimum 430 mm; maximum on request 8330 mm
• Standard Dimming: Trailing-edge / phase-cut (rotary dimmer)
• DALI-A: Available, 220–240V only
• 0/1–10V: Available on request, 220–240V
• Mounting Plate: 116 × 116 × 8 mm
• Ceiling Rose: 195 × 195 × 40 mm
• Ingress Protection: IP20
• Certification: CE

DALI-A

DALI-A is available for both Large and X-Large Trace Circular configurations. The mounting-plate versions use a DALI LED driver installed in the ceiling cavity, while the ceiling-rose versions have the DALI LED driver installed in the ceiling rose. DALI-A is specified for 220–240V only.
