Pendulum Wall Light – CTO Lighting

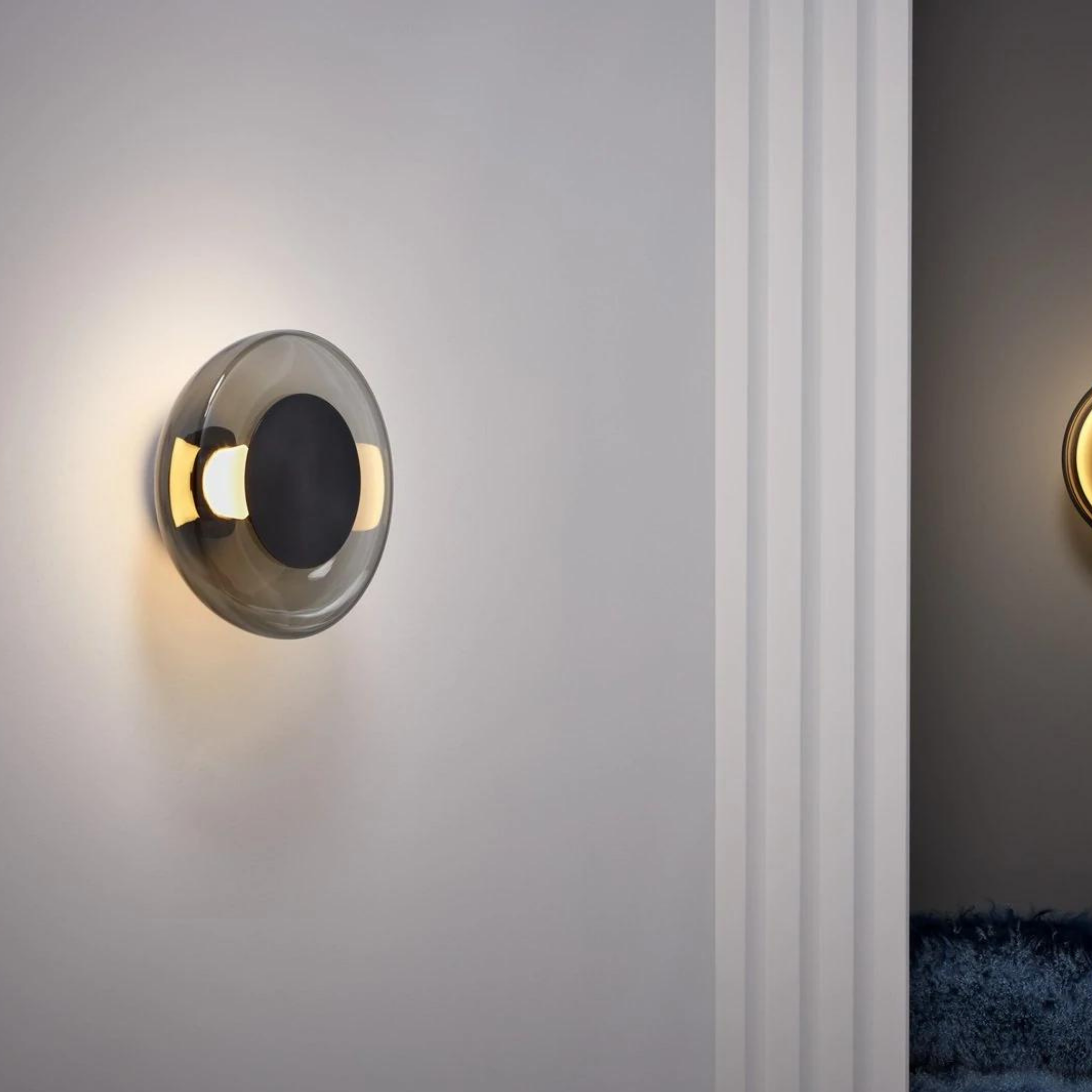

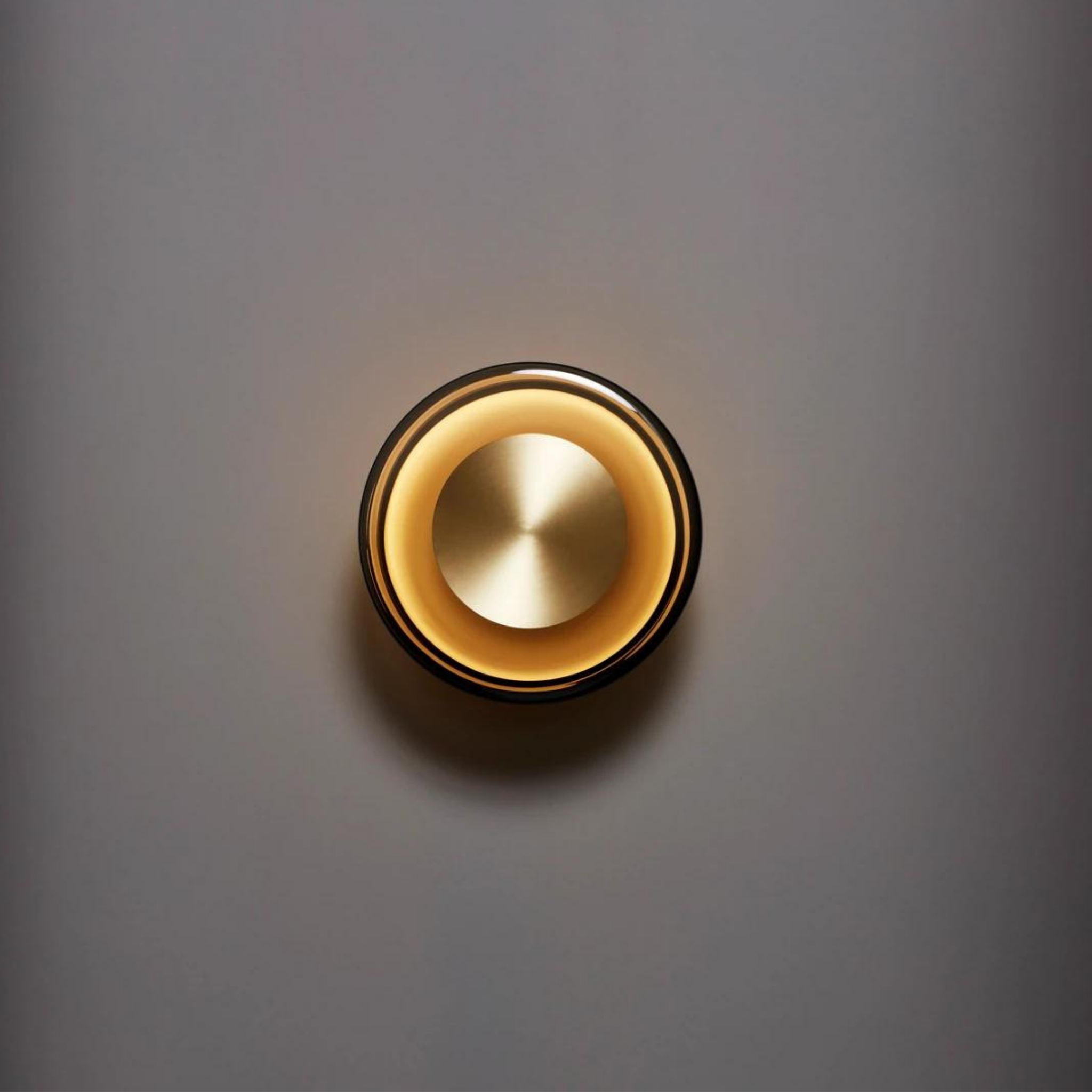

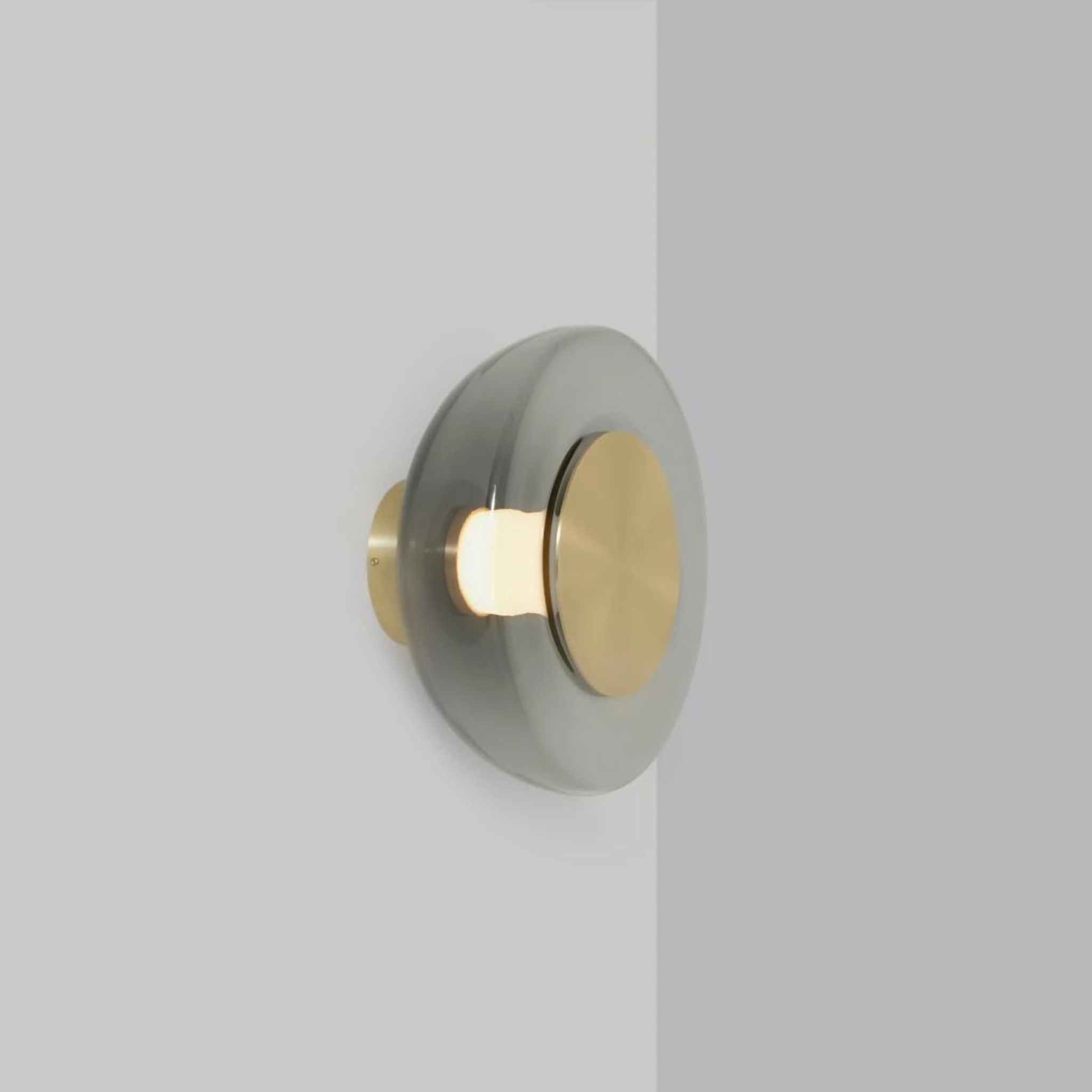

The Pendulum Wall Light by CTO Lighting features a sculptural smoked glass shade with refined metal detailing. Measuring Ø320 × 150 mm, it uses an integrated 8W 2700K LED and is available in Bronze or Satin Brass, with standard, DALI-A, DALI-B, and 0/1–10V dimming options.

Product Specifications

• Dimensions: Ø320 × 150 mm
• Weight: 5 kg / 11 lb
• Glass: Smoked Glass
• Light Source: Integrated LED
• LED: 8W, 2700K
• Voltage: 220–240V / 110–130V
• Standard Dimming: Trailing-edge / phase-cut rotary dimmer
• DALI-A: Available, 220–240V only
• DALI-B: Available, 220–240V only
• 0/1–10V: Available on request, 220–240V or 110–130V
• LED Driver: Installed in the wall/ceiling rose; drivers can be installed up to 20m from the light body
• Standard Wall Rose / Plate: Ø116 × 35 mm
• DALI-B Wall Rose: Ø140 × 35 mm
• IP Rating: IP20
• Certification: CE

DALI-A

DALI-A is available at 220–240V only, with the DALI LED driver installed in the wall/ceiling cavity. The standard Ø116 × 35 mm wall box is retained.

DALI-B

DALI-B is available at 220–240V only. The DALI driver is installed in the wall/ceiling rose and uses a deeper Ø140 × 35 mm wall box where cavity space is limited.

0/1–10V

0/1–10V dimming is available on request for both 220–240V and 110–130V versions.
