Modulo Pendant – CTO Lighting

The Modulo Pendant by CTO Lighting combines smoked kiln cast glass and opal glass with a refined architectural form. Available in Horizontal and Vertical configurations, both feature integrated 27W 2700K LED illumination, three premium finishes and standard, DALI-A or DALI-B dimming options.

Product Specifications

• Configuration Options:

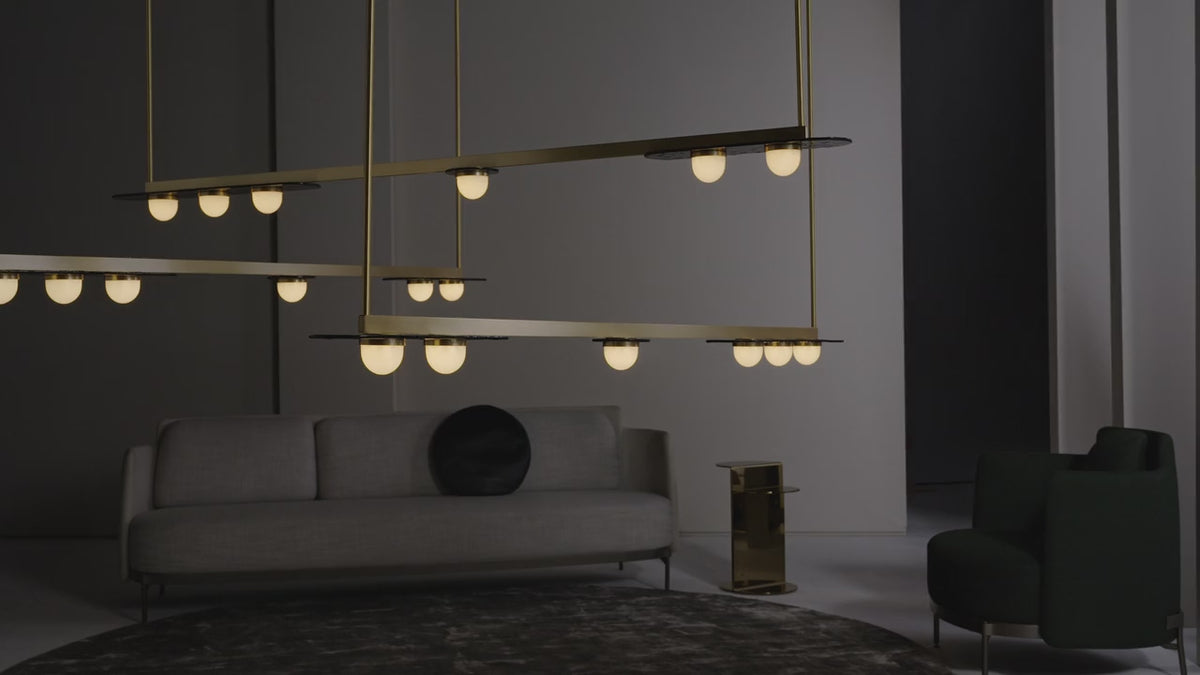

  • Horizontal: 1880 × 120 × 100 mm — 11 kg

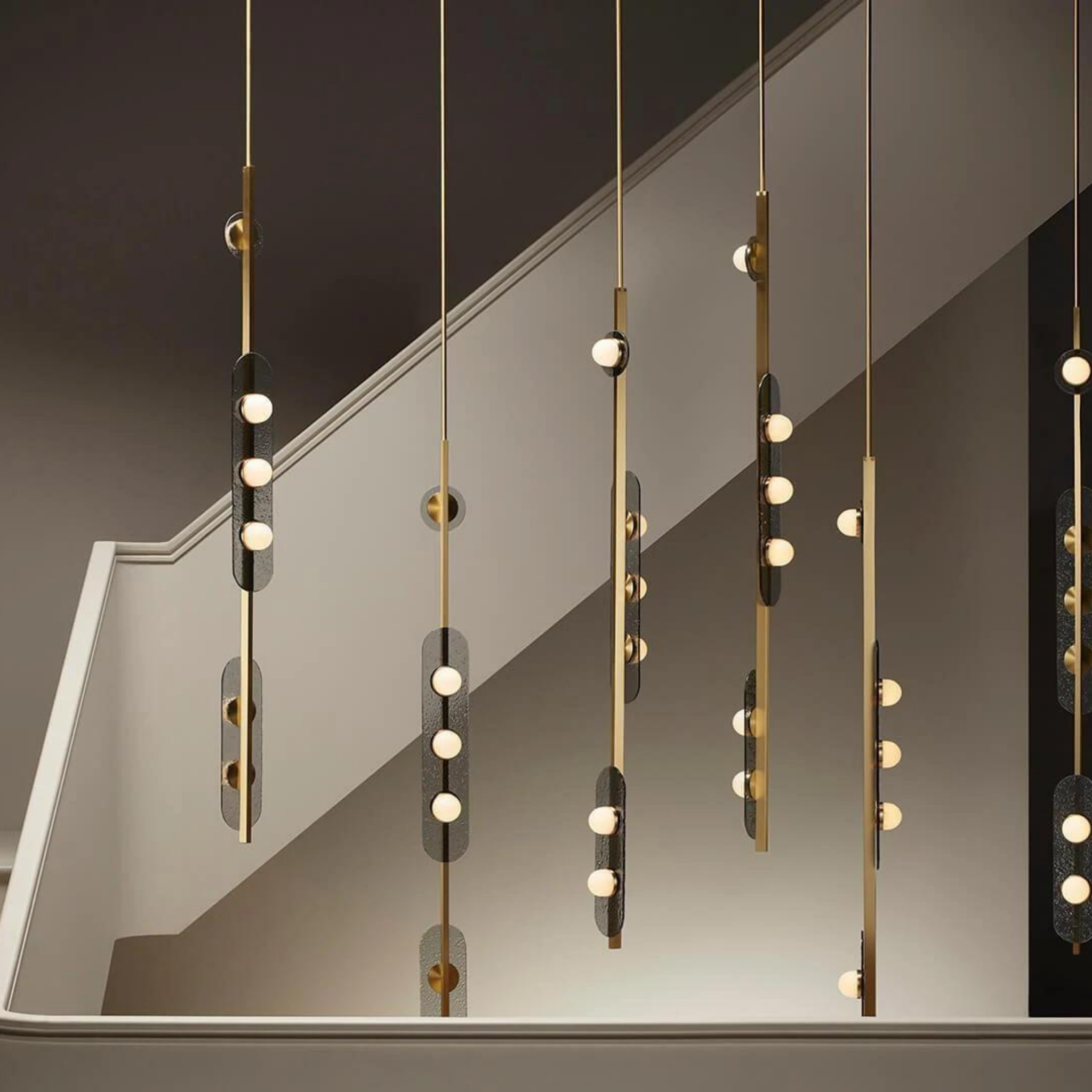

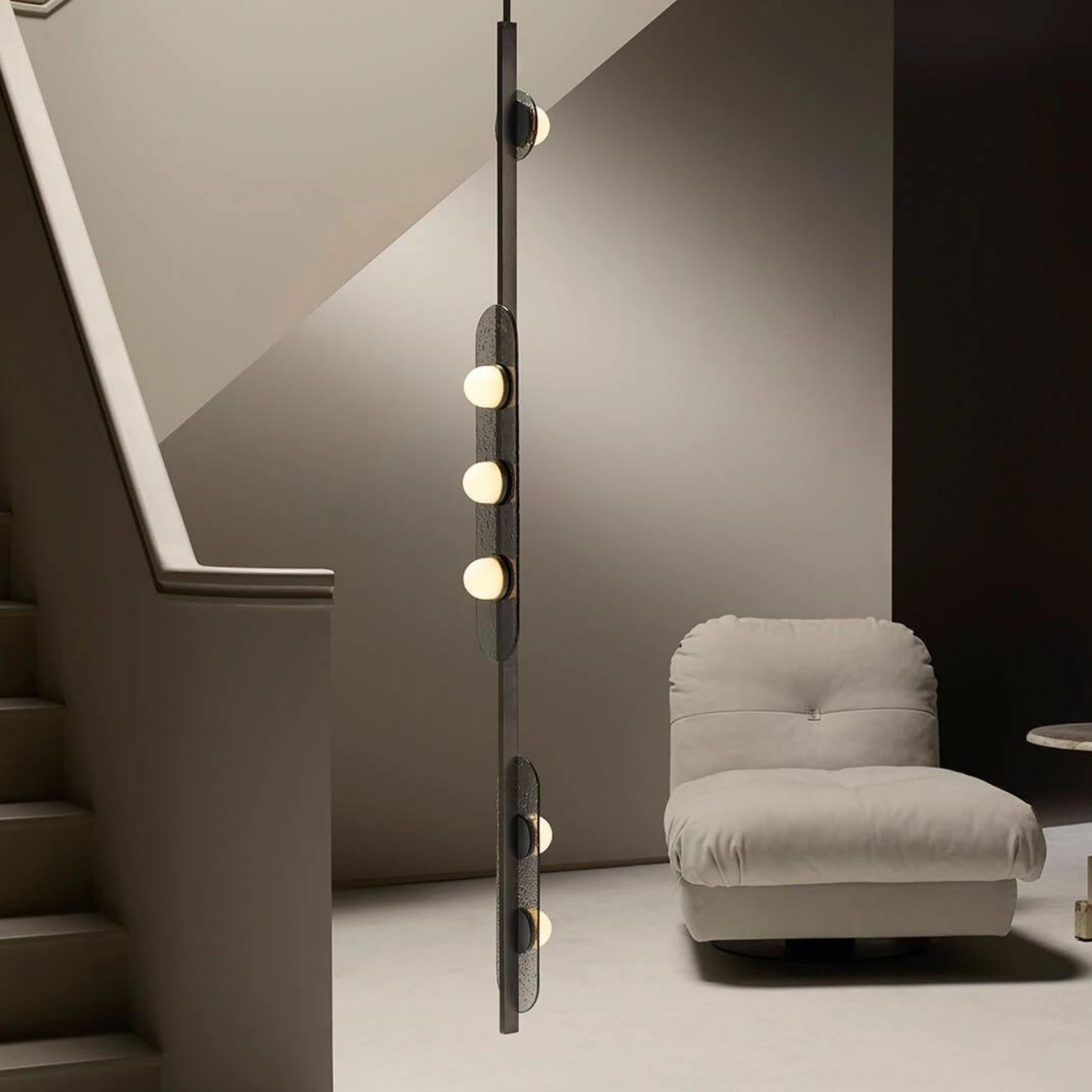

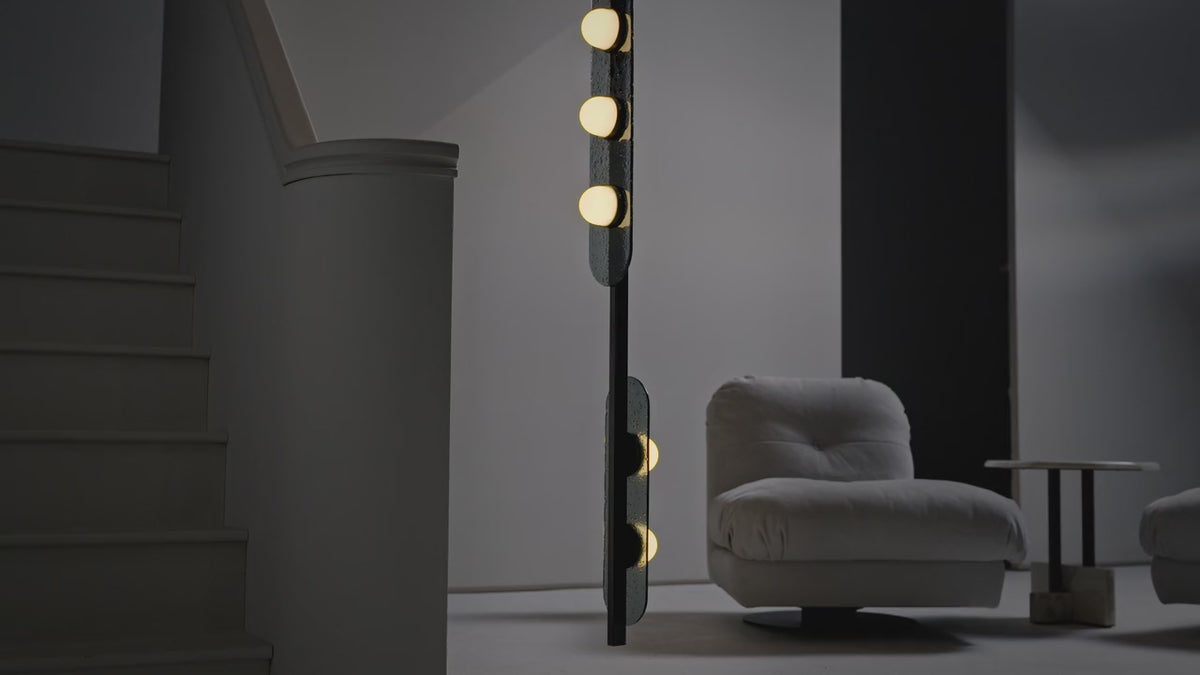

  • Vertical: 160 × 120 × 1700 mm — 10 kg
• Glass: Smoked Kiln Cast Glass and Opal Glass
• Light Source: Integrated mains LED
• LED: 27W, 2700K
• Voltage: 220–240V / 110–130V
• Standard Dimming: Trailing-edge / phase-cut rotary dimmer
• DALI-A: Available, 220–240V only
• DALI-B: Available, 220–240V only
• Horizontal Overall Drop: Minimum 145 mm
• Vertical Overall Drop: Minimum 1745 mm
• Drop Rod:
  • Horizontal: 2 × 1000 mm, Ø12.7 mm
  • Vertical: 1 × 1000 mm, Ø12.7 mm
• Standard Ceiling Rose: Ø116 × 25 mm
• DALI-B Ceiling Rose: Ø140 × 35 mm
• IP Rating: IP20
• Certification: CE
• Ceiling Structure: Must be strong enough to support the fixture weight.

DALI-A

The DALI-A version is available at 220–240V, with the DALI converter installed inside the ceiling cavity. The standard Ø116 × 25 mm ceiling rose is retained.

DALI-B

DALI-B is available at 220–240V. The converter is installed inside the ceiling rose, requiring the deeper Ø140 × 35 mm rose. The minimum overall drop increases to 155 mm for Horizontal and 1755 mm for Vertical.
