Mezzo Pendant Cluster Round – CTO Lighting

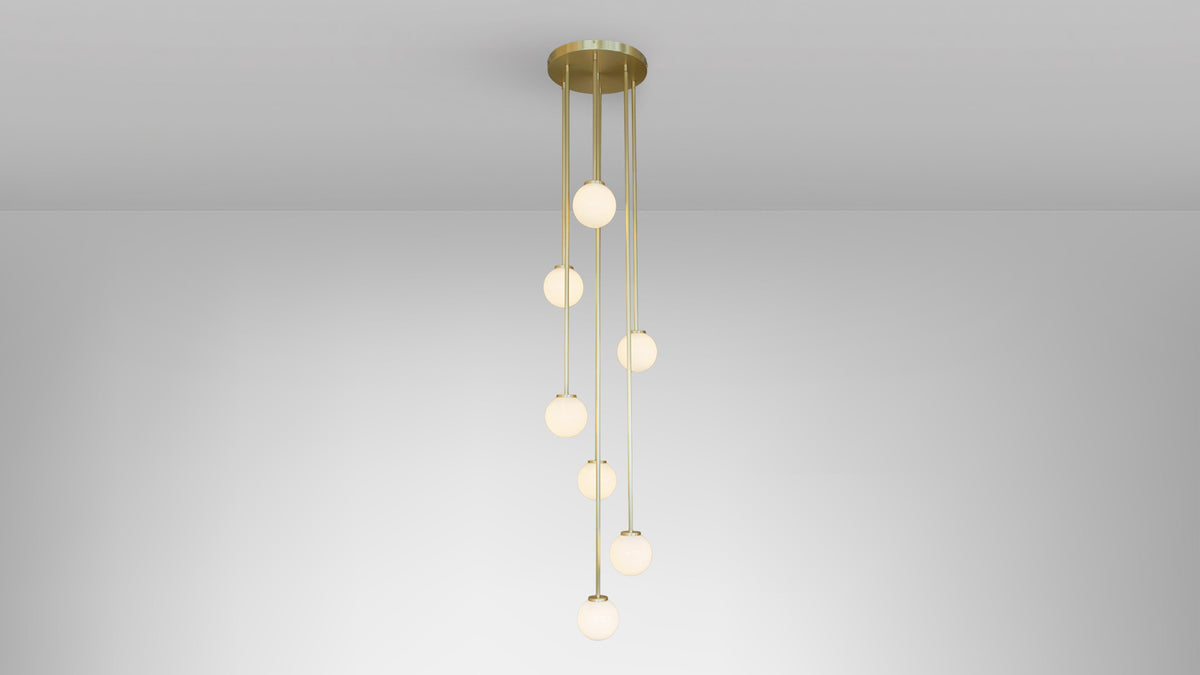

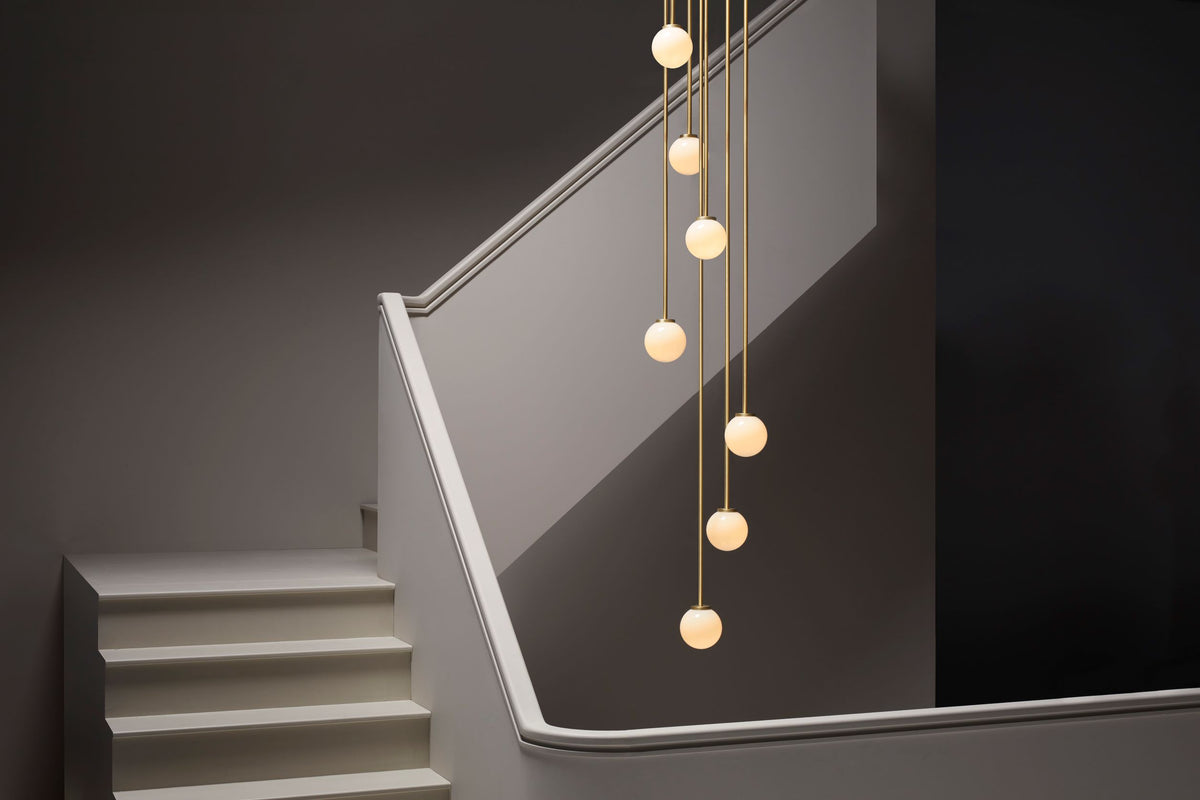

The Mezzo Pendant Cluster Round by CTO Lighting is a customisable cluster pendant featuring 3–10 individual shades arranged at varying heights. Available in Antique Bronze, Bronze and Satin Brass, with drop lengths specified to suit the installation. Standard dimming and DALI-A options are available.

Product Specifications

• Cluster Options: 3, 4, 5, 6, 7, 8, 9 or 10 shades
• Body Diameter:
  • Cluster 3: Ø270 mm
  • Cluster 4–7: Ø370 mm
  • Cluster 8–10: Ø450 mm
• Height: Variable
• Longest Drop: Maximum 6000 mm
• Shortest Drop: Minimum 300 mm
• Weight: Variable
• Light Source: 1 × G9 per shade
• Maximum Wattage: 25W halogen per shade
• LED Option: 2.3W LED, 2700K per shade
• Voltage: 220–240V / 110–130V
• Standard Dimming: Trailing-edge / phase-cut rotary dimmer
• DALI-A: Available, 220–240V only
• DALI-A Converter: Installed inside the ceiling/wall cavity
• IP Rating: IP20
• Certification: CE

Drop Configuration

The shortest and longest drop lengths must be specified when ordering. The maximum longest drop is 6000 mm, while the minimum shortest drop is 300 mm.

The technical drawing on page 5 groups the configurations as Cluster Round 3, Cluster Round 4–7 and Cluster Round 8–10, with corresponding mounting plate dimensions of approximately Ø194 mm, Ø300 mm and Ø385 mm respectively.

DALI-A

DALI-A is available in 220–240V only. The converter is installed inside the ceiling/wall cavity, avoiding aesthetic alterations to the installation.
