Cloudesley Chandelier – CTO Lighting

The Cloudesley Chandelier by CTO Lighting is a sculptural chandelier featuring softly rounded matt opal glass shades with refined Bronze or Satin Brass detailing. Available in Small, Medium and Large sizes, it uses replaceable E27/E26 lamps and supports standard dimming, with DALI options available depending on size.

Product Specifications

• Size Options:

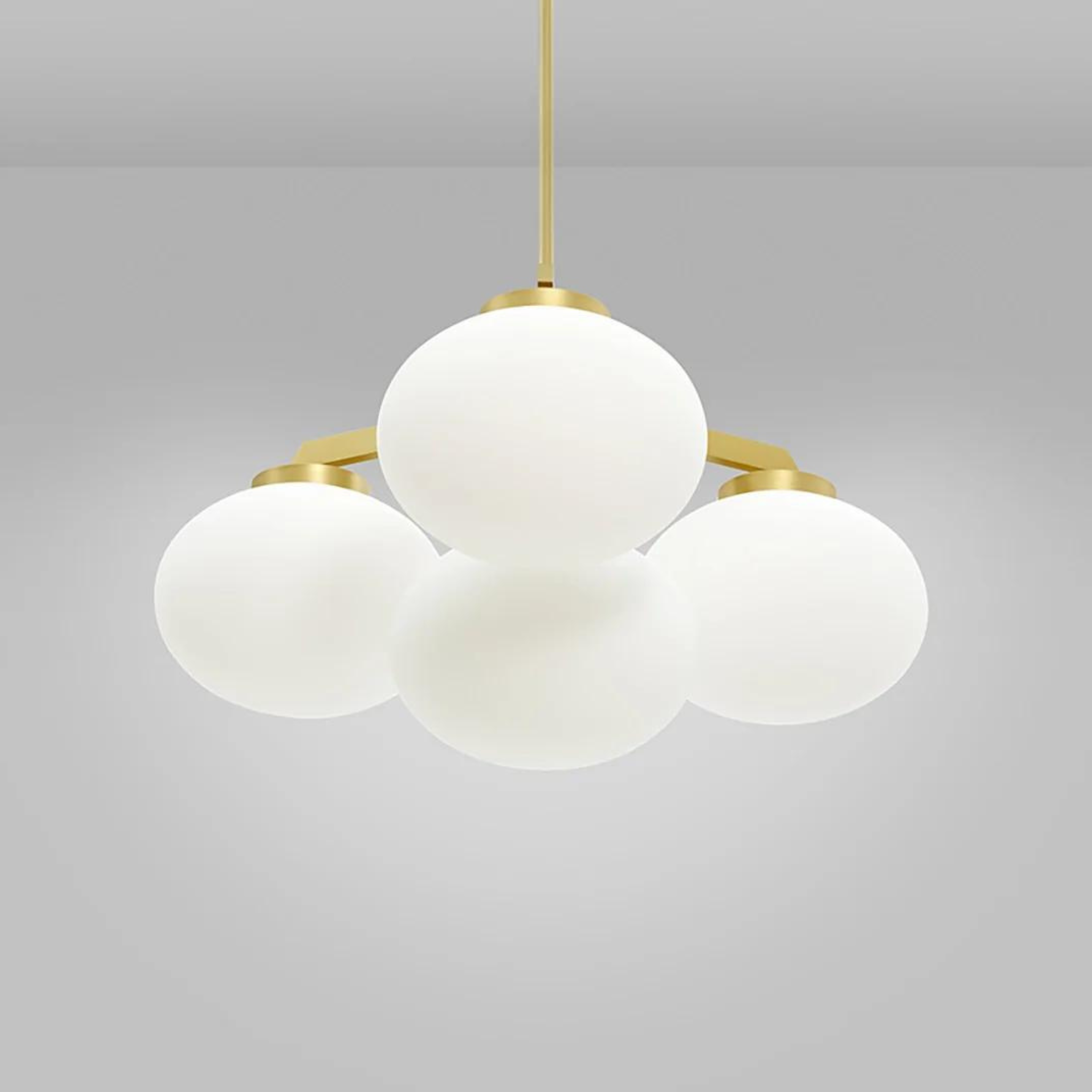

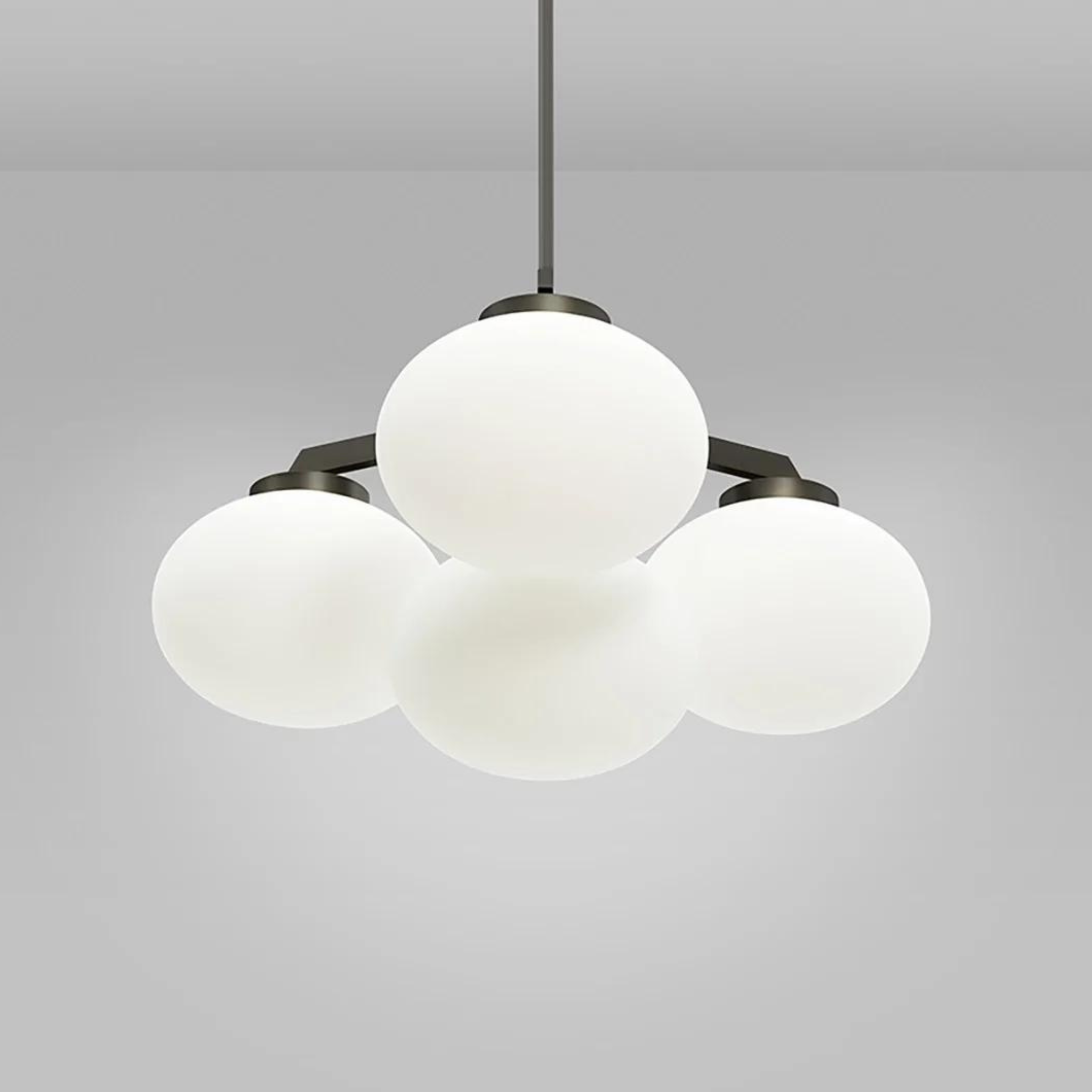

  • Small: Ø850 × 450 mm — 11 kg
  • Medium: Ø920 × 450 mm — 20 kg

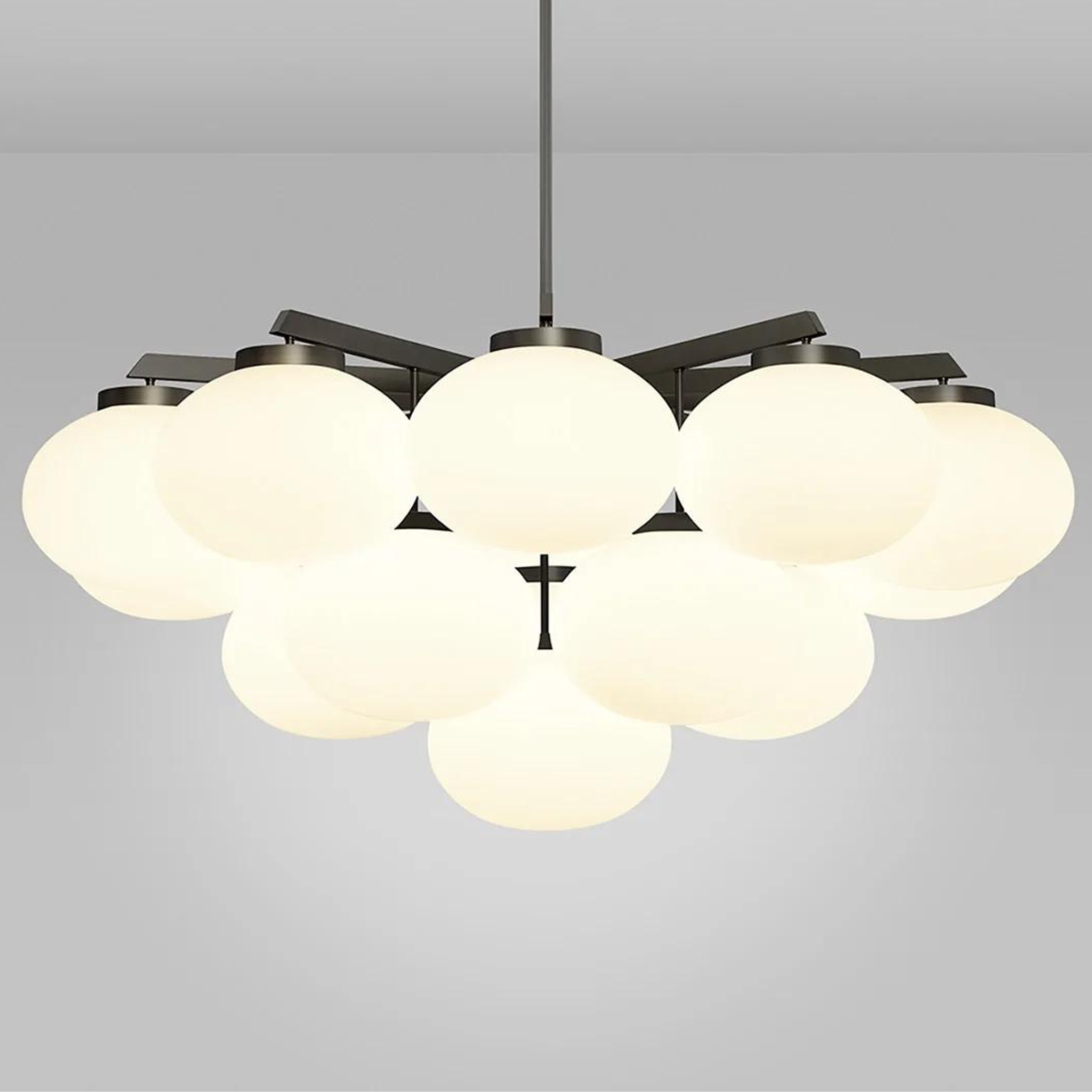

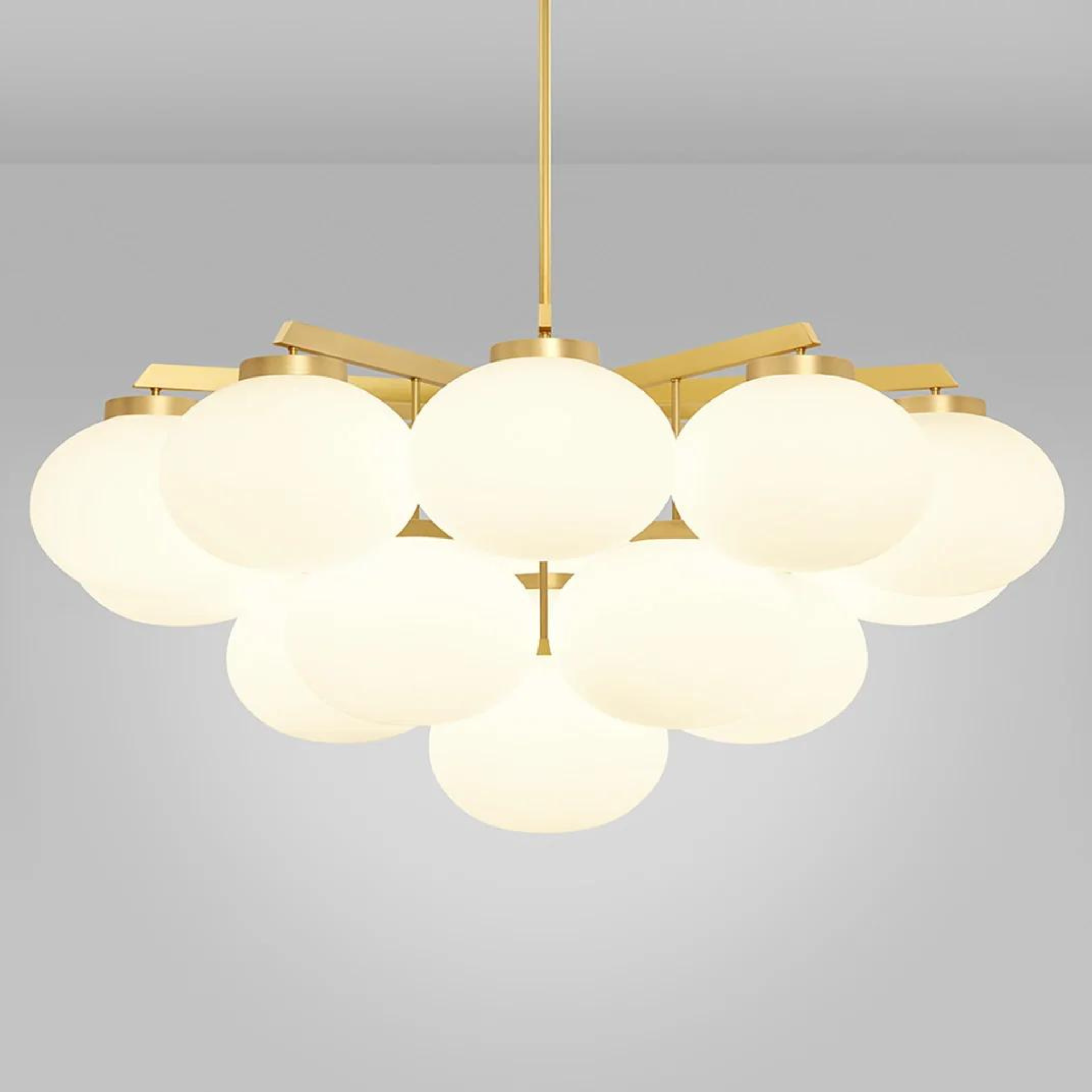

  • Large: Ø1300 × 620 mm — 41 kg

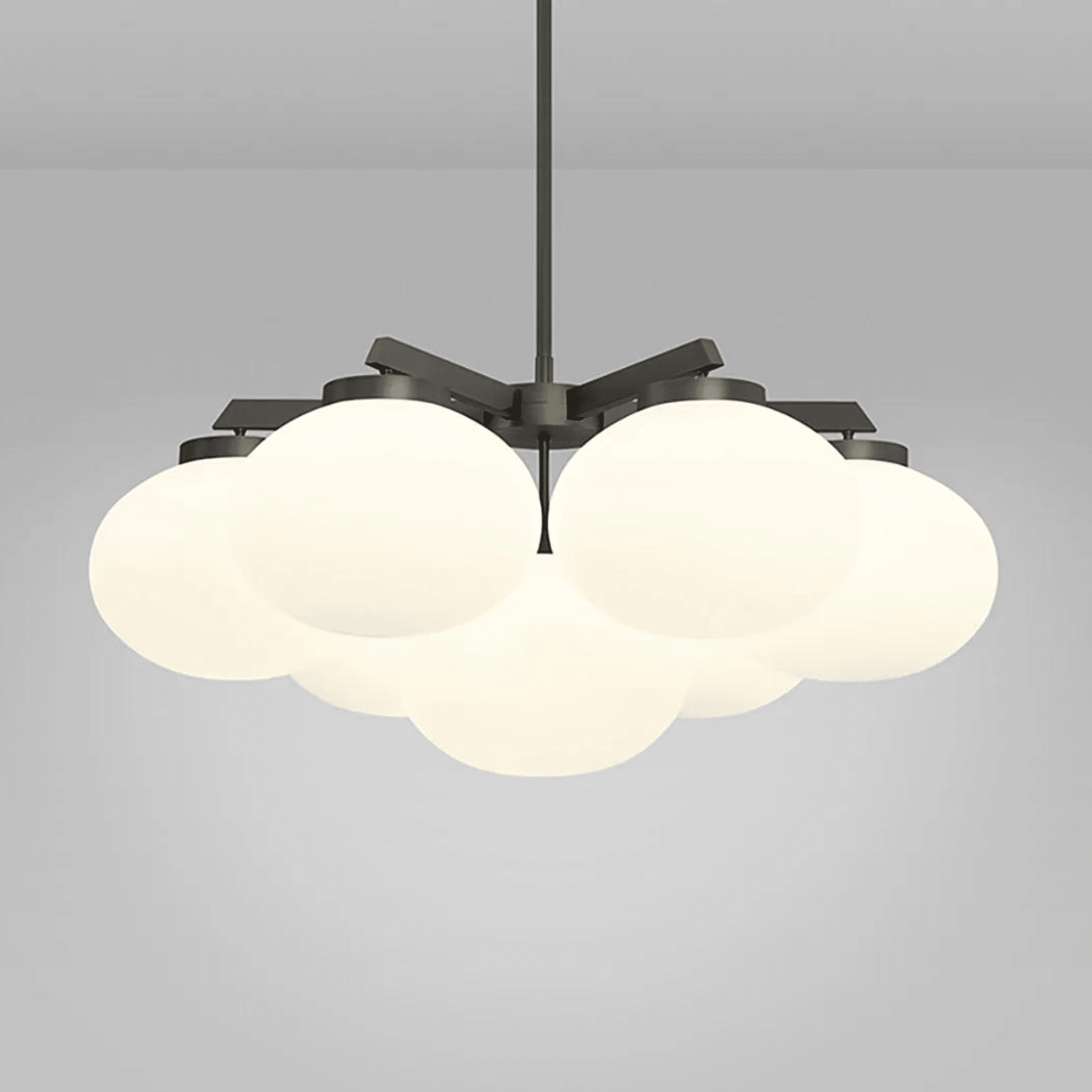

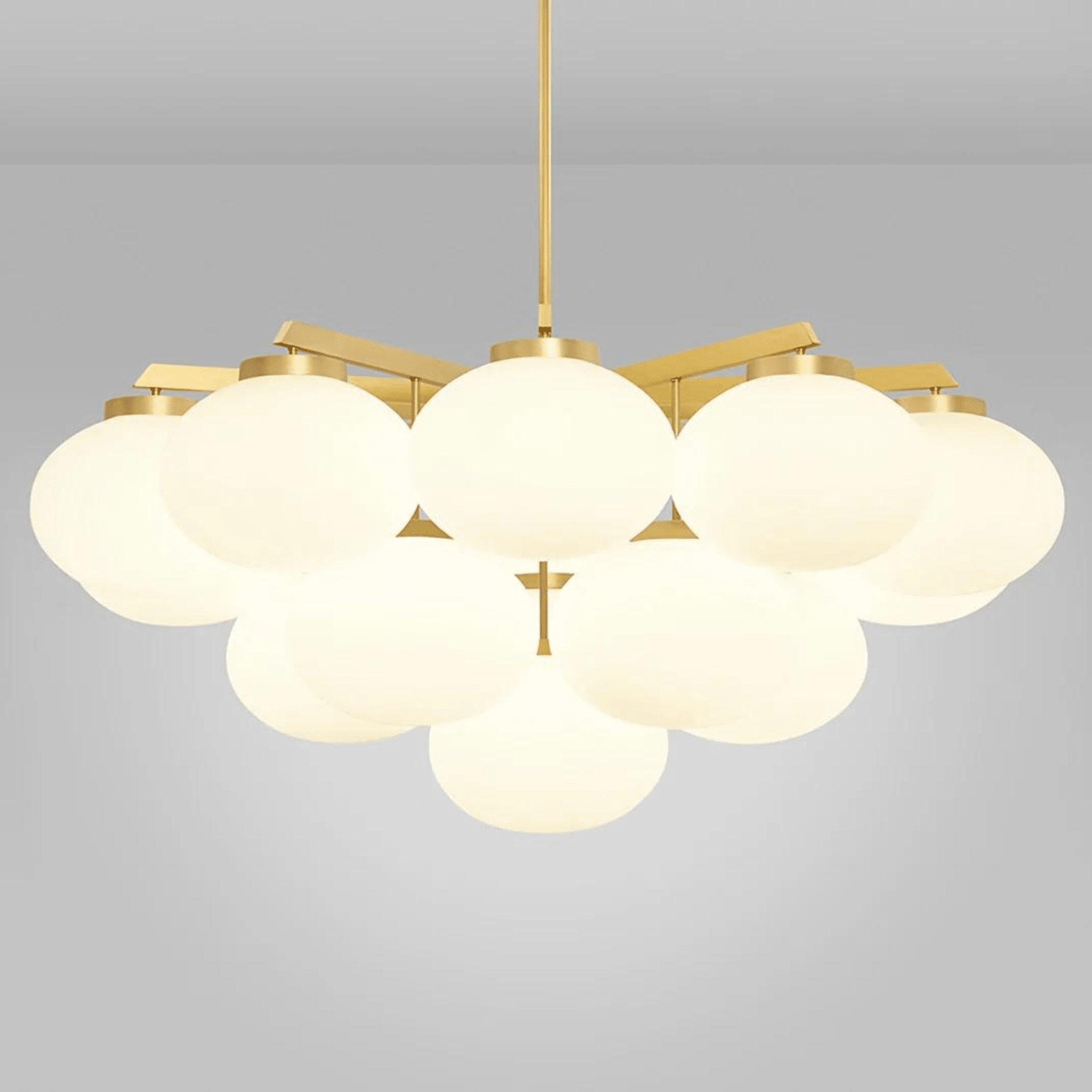

• Finish: Bronze with Matt Opal Glass / Satin Brass with Matt Opal Glass
• Light Source:
  • Small: 4 × E27 / E26
  • Medium: 7 × E27 / E26
  • Large: 16 × E27 / E26
• Maximum Wattage: 60W per bulb
• LED Option: 8W LED, 2700K
• Voltage: 220–240V / 110–130V
• Overall Drop:
  • Small: minimum 495 mm
  • Medium: minimum 495 mm
  • Large: minimum 670 mm
• Drop Rod: 1000 mm × Ø16 mm, adjustable on site
• Standard Dimming: Trailing-edge / phase-cut
• DALI-A: Available, 220–240V
• DALI-B: Available for Small and Medium, 220–240V
• Ceiling Rose:
  • Standard: Ø116 × 25 mm
  • DALI-B: Ø204 × 30 mm
• Ingress Protection: IP20
• Certification: CE / UL

The datasheets specify different ceiling structures and minimum drops for each size; the 41 kg Large version specifically requires a ceiling structure capable of supporting its weight.

DALI Options

• DALI-A: Converter installed within the ceiling cavity.
• DALI-B: Converter installed inside a deeper ceiling rose where there is insufficient cavity space.
• Small & Medium: Both DALI-A and DALI-B are specified.
• Large: DALI-A is specified in the supplied datasheet; DALI-B is not listed.

Finishes

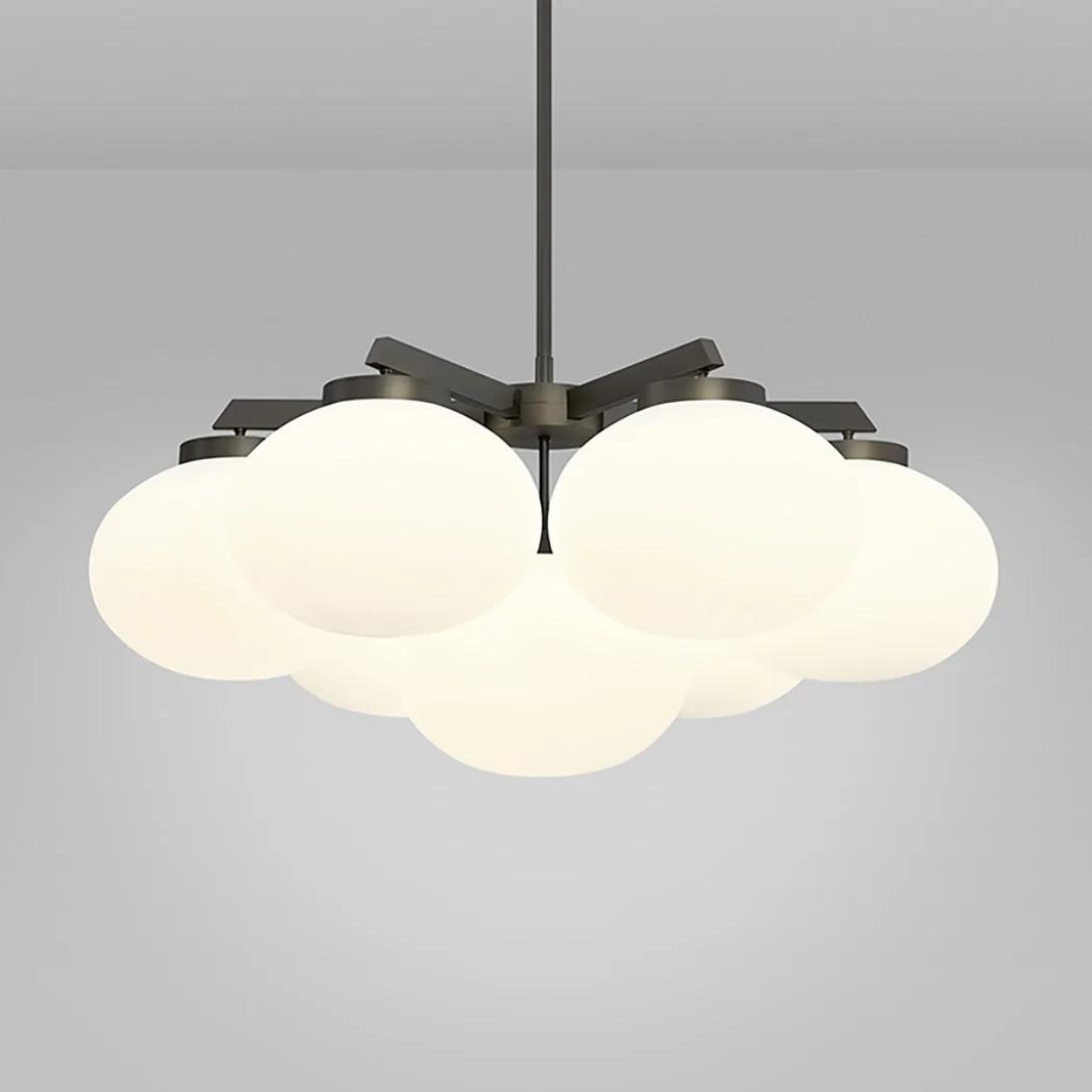

• Bronze with Matt Opal Glass

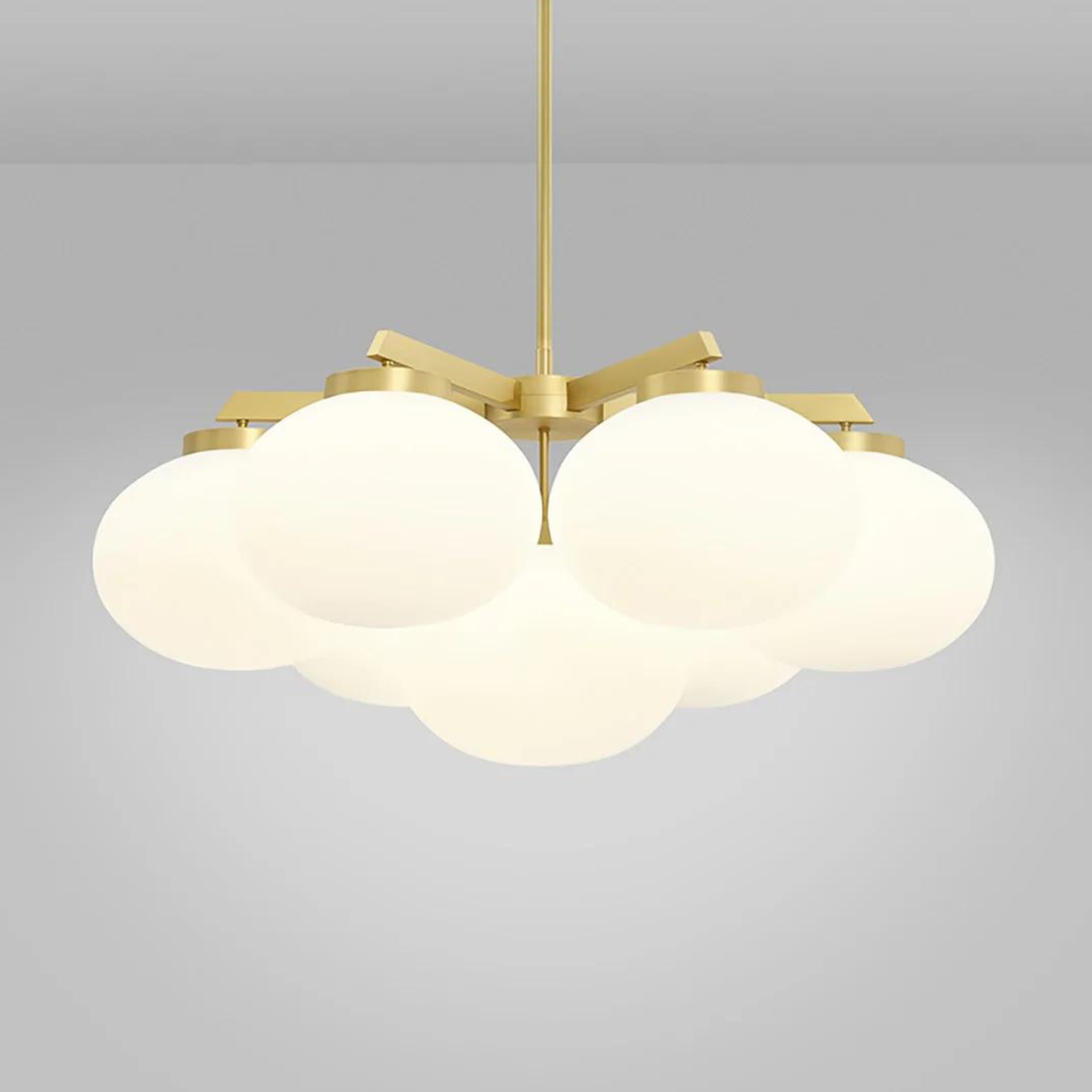

• Satin Brass with Matt Opal Glass
